Genuine Minerals

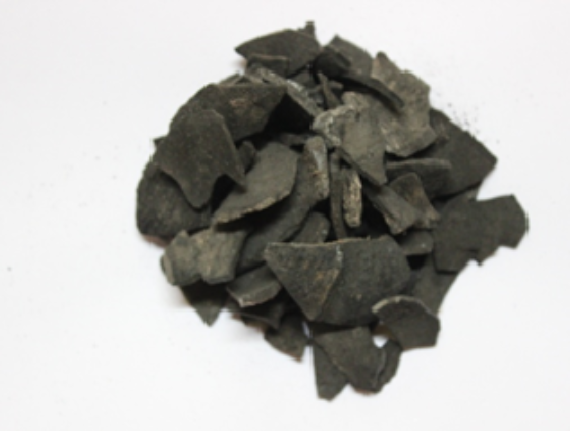

Coconut Shell Charcoal (Zero Sulpher)
Coconut Shell Charcoal is used as carbon additive in SG Iron castings for its zero sulphur content and fixed carbon of 78% which gives more carbon recovery.

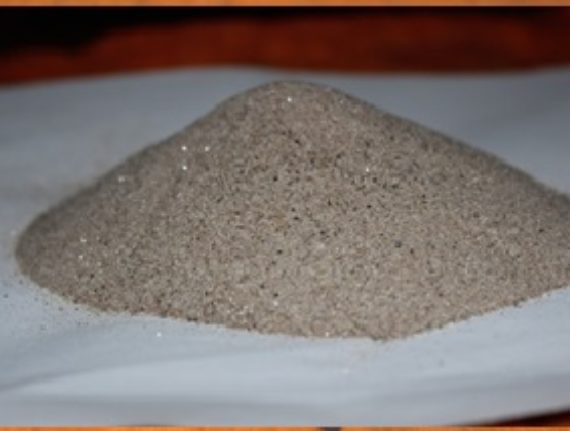

Zircon Sand
Specifications | |
Zro2 | 60-65% min |
Sio2 | 30-35% min |
Variation in % | 2% |

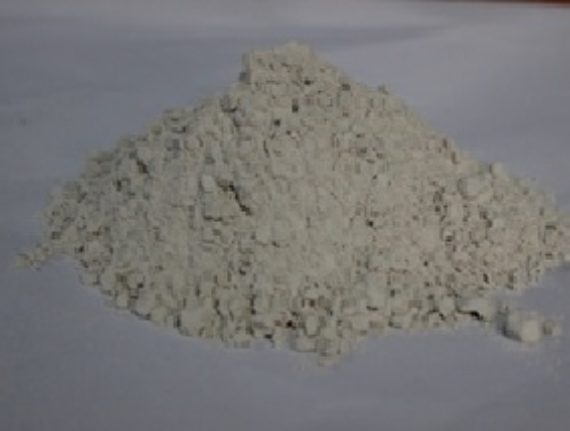

Zircon Flour
Chemical Specification | |
ZrO2 | 64-65 % |
SiO2 | 32-33 % |
Fe2O3 | 0.08-0.13 % Max |
TiO2 | 0.30-0.40 % Ma x |

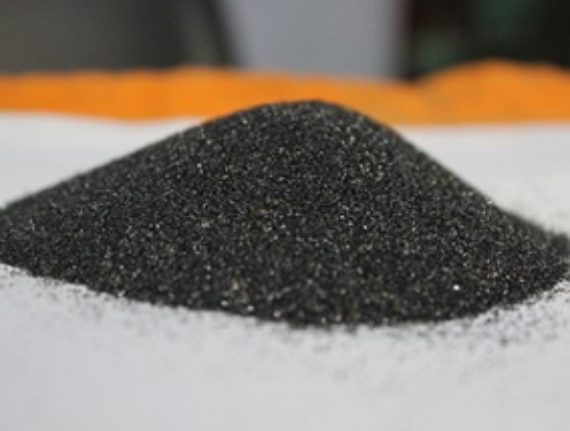

Chromite Sand
Chemical Specification :Chromite Sand: | |
Cr2O3 | 45-50% |
SiO2 | 0.5-0.9% |
FeO | 25-27 % |
Al2O3 | 15-18% |
CrFe | 1.0-2.0% |
CaO | 0.2-0.5% |
MgO | 8-10 |

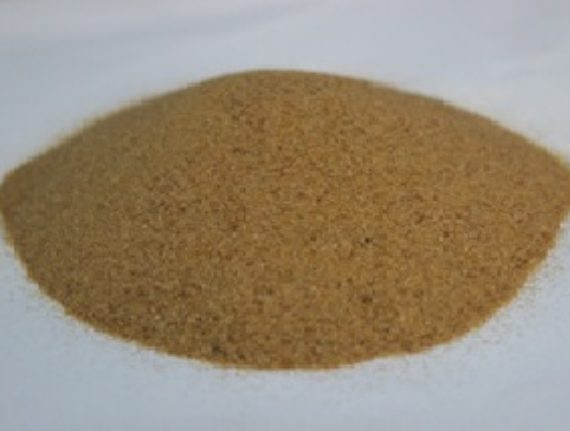

Resin Coated Sand
Chemical Specification | |
AFS | 55-60 |
HTS @230 DEG C | 17-20 |
STICK POINT | 98-100 |
BUILD UP % @ 180 DEG C | 45-56 |
PEEL BACK % @180 DEFG C | 1.0 % MAX |

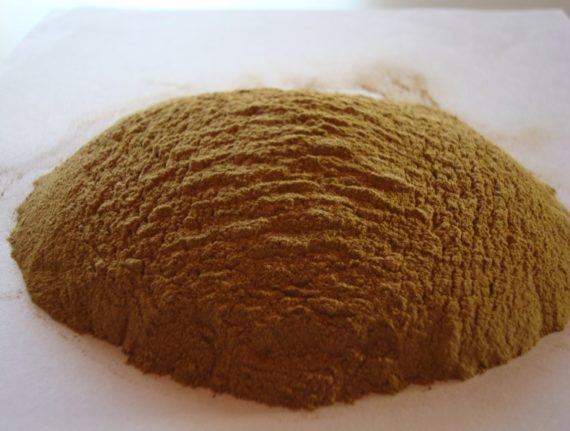

Bentonite
Bentonite is an absorbent aluminium phyllosilicate clay consisting mostly of montmorillonite. For industrial purposes, two main classes of bentonite exist: sodium and calcium bentonite.
Technical Specification | |
Swelling Capacity | 30% to 40% |
Gelling Time | Instant |
P.H. | 11.5% |
Liquid Limit | 890 |
Moisture | 12.4% |

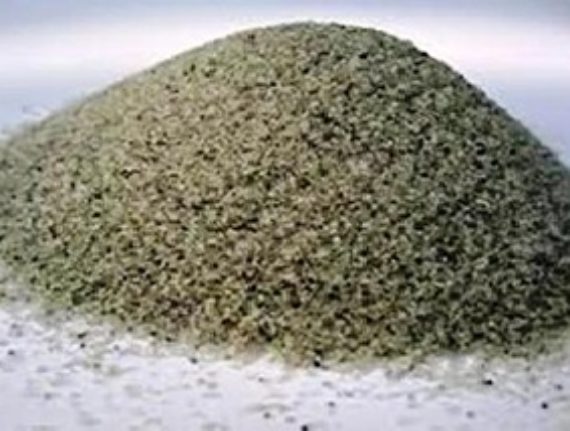

Olivine Sand
Olivine Sand has high fusion point, low uniform thermal expansion, and its remarkable ability to resist fracture from thermal shock, Magnesium Iron Sillicate – To cast objects in aluminium foundary.
Wash Silica Sand
Sio2 -> 98%

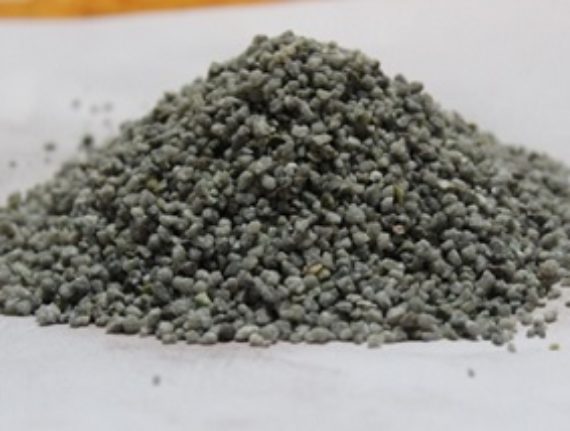

Perlite Ore
Perlite ore is used for slag remove from metal easily.
